WebSocketServer.h File Reference

#include <DynBuffer.h>

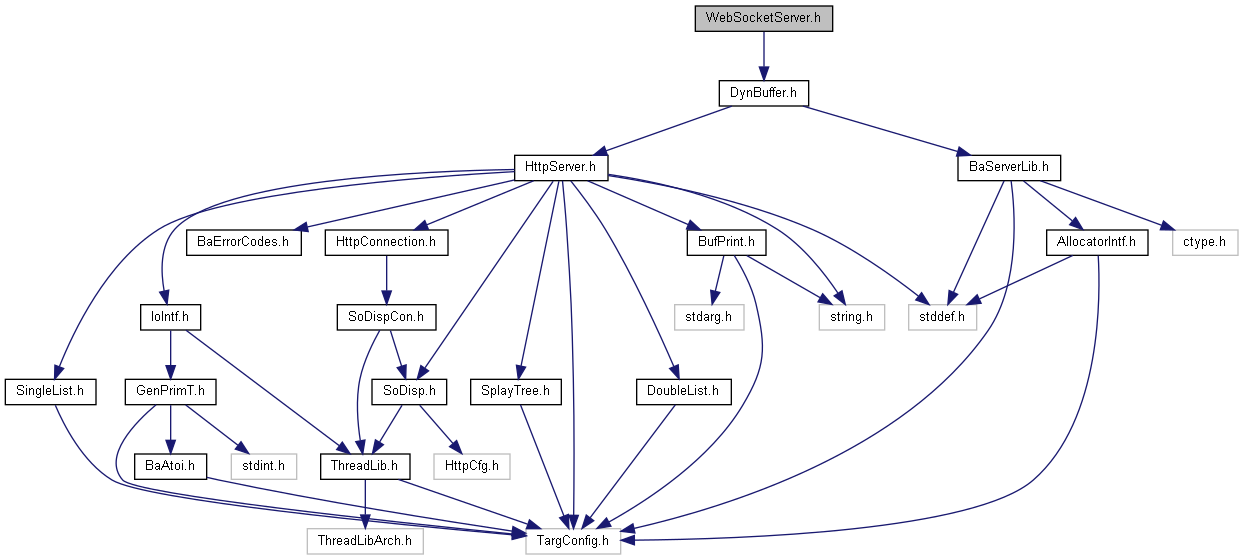

Include dependency graph for WebSocketServer.h:

Go to the source code of this file.

Classes
struct	WSSCB
	WebSocket Server Connection Callback Interface: provides an interface between your application and the WebSocket server. More...
struct	WSS
	WebSocket Server (WSS) More...

Macros
#define	WSSCB_constructor(o, frame, close, ping)    (o)->frameFp=frame,(o)->closeFp=close,(o)->pingFp=ping
	Initialize callback storage. More...
#define	WSS_write(o, data, len, isTxt)   WSS_rawWrite(o, data, len, isTxt?1:2)
	Send one complete, unmasked server frame using blocking transport writes. More...
#define	WSS_isValid(o)   SoDispCon_isValid((SoDispCon*)o)
	Check the local transport handle. More...

Typedefs
typedef void(*	WSSCB_Frame) (struct WSSCB *o, struct WSS *wss, void *data, int len, int text)
	Receive a complete unfragmented text or binary frame. More...
typedef void(*	WSSCB_Ping) (struct WSSCB *o, struct WSS *wss, void *data, int len)
	Optional notification after the internal pong send attempt succeeds. More...
typedef void(*	WSSCB_Close) (struct WSSCB *o, struct WSS *wss, int status)
	Notify closure after the underlying connection has been closed. More...
typedef struct WSSCB	WSSCB
	WebSocket Server Connection Callback Interface: provides an interface between your application and the WebSocket server. More...
typedef struct WSS	WSS
	WebSocket Server (WSS) More...

Functions
BA_API void	WSS_constructor (WSS *o, WSSCB *cb, SoDisp *disp, int startSize, int expandSize)
	Initialize an unconnected WebSocket object. More...
BA_API void	WSS_destructor (WSS *o)
	Close the transport and free receive storage, without a WebSocket close handshake or close callback. More...
BA_API int	WSS_upgrade (WSS *o, HttpRequest *req)
	Perform the server handshake and take over the request's connection. More...
BA_API int	WSS_connect (WSS *o, HttpConnection *con)
	Take an HTTP connection after its WebSocket handshake is complete. More...
BA_API int	WSS_rawWrite (WSS *o, const void *data, int len, int opCode)
	Send one final server frame with a caller-selected opcode. More...
BA_API int	WSS_close (WSS *o, int statusCode)
	Attempt to send a close frame, then close the transport immediately. More...
