#include <ThreadLib.h>
#include <SoDisp.h>

Include dependency graph for SoDispCon.h:

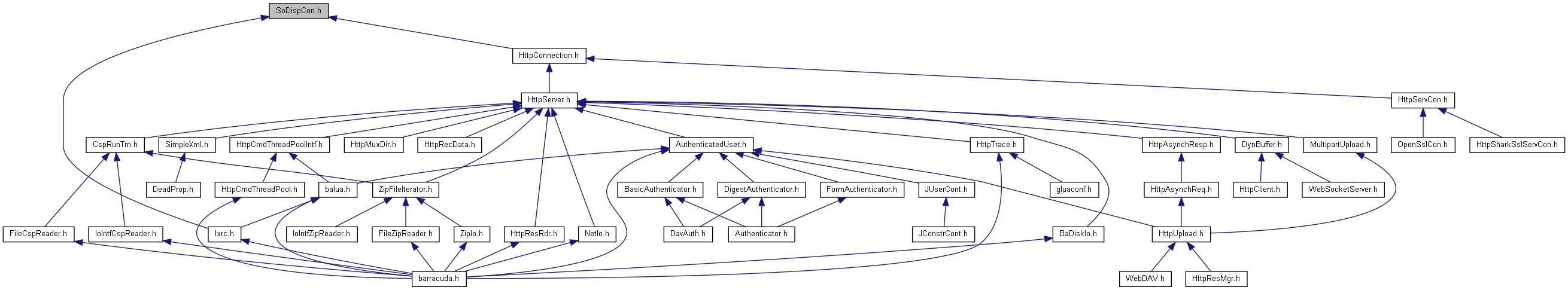

This graph shows which files directly or indirectly include this file:

Classes
struct	SoDispCon
	Contains information about the physical socket connection. More...

Macros
#define	SoDispCon_socketHasNonBlockData(o) (((o)->dataBits & SoDispCon_socketHasNonBlockDataBitMask) ? TRUE : FALSE)

#define	SoDispCon_hasMoreData(o) (((o)->dataBits & SoDispCon_hasMoreDataDataBitMask) ? TRUE : FALSE)

#define	SoDispCon_dispatcherHasCon(o) (((o)->dataBits & SoDispCon_dispatcherHasConDataBitMask)?TRUE:FALSE)

#define	SoDispCon_recEvActive(o) (((o)->dataBits & SoDispCon_recEvActiveDataBitMask)?TRUE:FALSE)

#define	SoDispCon_sendEvActive(o) (((o)->dataBits & SoDispCon_sendEvActiveDataBitMask)?TRUE:FALSE)

#define	SoDispCon_isNonBlocking(o) (((o)->dataBits & SoDispCon_isNonBlockingDataBitMask) ? TRUE : FALSE)

#define	SoDispCon_isIP6(o) (((o)->dataBits & SoDispCon_IP6DataBitMask) ? TRUE : FALSE)

#define	SoDispCon_isDGRAM(o) (((o)->dataBits & SoDispCon_DGramBitMask) ? TRUE : FALSE)

#define	SoDispCon_isSecure(o) ((o)->exec(o,0,SoDispCon_GetSharkSslCon,0,0) > 0)
	Test a successfully installed transport for TLS. More...

#define	SoDispCon_getSharkSslCon(o, sharkSslConPtrPtr) (o)->exec(o,0,SoDispCon_GetSharkSslCon,sharkSslConPtrPtr,0)
	Inspect a successfully installed transport. More...

#define	SoDispCon_isValid(o) HttpSocket_isValid(&(o)->httpSocket)

#define	SoDispCon_getDispatcher(o) (o)->dispatcher

#define	SoDispCon_setDispSendEvent(o, dispSendEvFp) (o)->dispSendEv=dispSendEvFp
	Install the send-ready callback before enabling events. More...

#define	SoDispCon_setDispRecEvent(o, dispRecEvFp) (o)->dispRecEv=dispRecEvFp
	Install the receive callback before enabling events. More...

#define	SoDispCon_readData(o, data, len, relmutex)
	Read through the installed transport using its recorded readiness. More...

#define	SoDispCon_asyncReady(o) (o)->exec(o,0,SoDispCon_ExTypeAsyncReady,0,0)
	Advance any pending asynchronous send without modifying its payload. More...

#define	SoDispCon_asyncSend(o, len) (o)->exec(o,0,SoDispCon_ExTypeAsyncReady,0,len)
	Begin or advance a send from the transport's asynchronous buffer. More...

#define	SoDispCon_destructor(o) SoDispCon_zzCloseCon(o,1)
	Shut down and close the socket, disable events and remove registration. More...

#define	SoDispCon_hardClose(o) SoDispCon_zzCloseCon(o, 2)
	Abortively close the socket, disable events and remove registration. More...

#define	SoDispCon_shutdown(o) SoDispCon_zzCloseCon(o, 1)
	Shut down and close the socket, disable events and remove registration. More...

#define	SoDispCon_closeCon(o) SoDispCon_zzCloseCon(o, 0)
	Close the socket, disable events and remove registration. More...

#define	SoDispCon_setReadTmo(o, timeout) (o)->rtmo = (U16)((timeout)/50)
	Set the read wait timeout used by supported socket ports. More...

#define	SoDispCon_getId(o) HttpSocket_getId(&(o)->httpSocket)

Typedefs
typedef void(*	SoDispCon_DispRecEv) (struct SoDispCon *con)
	Dispatcher receive notification, invoked with its mutex held. More...

typedef void(*	SoDispCon_DispSendEv) (struct SoDispCon *con)
	Dispatcher send-ready notification, invoked with its mutex held. More...

typedef struct SoDispCon	SoDispCon
	Contains information about the physical socket connection. More...

Functions
BA_API int	SoDispCon_getSharkAlert (SoDispCon o, U8 alertLevel, U8 *alertDescription)
	Read the current SharkSSL alert fields. More...

BA_API void	SoDispCon_constructor (SoDispCon o, struct SoDisp dispatcher, SoDispCon_DispRecEv e)
	Initialize an empty connection without opening a socket. More...

BA_API int	SoDispCon_blockRead (SoDispCon o, void data, int len)
	Wait for input using a blocking connection. More...

BA_API int	SoDispCon_sendData (SoDispCon o, const void data, int len)
	Send an entire buffer through the installed transport. More...

BA_API int	SoDispCon_sendDataNT (SoDispCon o, const void data, int len)
	Send all bytes with the sendData contract, but omit body tracing. More...

BA_API int	SoDispCon_sendDataX (SoDispCon o, const void data, int len)
	Send all bytes without releasing the dispatcher mutex. More...

BA_API int	SoDispCon_sendChunkData (SoDispCon o, const void data, int len)
	Send one HTTP chunk, including its hexadecimal size and CRLF delimiters. More...

BA_API int	SoDispCon_asyncReadyF (SoDispCon *o)
	Advance asynchronous sending; same status contract as SoDispCon_asyncReady. More...

BA_API void *	SoDispCon_allocAsynchBuf (SoDispCon o, int size)
	Obtain transport-owned writable storage for asynchronous sending. More...

BA_API int	SoDispCon_setNonblocking (SoDispCon *o)
	Select nonblocking socket mode. More...

BA_API int	SoDispCon_setBlocking (SoDispCon *o)
	Select blocking socket mode. More...

BA_API int	SoDispCon_moveCon (SoDispCon o, SoDispCon newCon)
	Move socket and transport ownership without copying object storage. More...

BA_API void	SoDispCon_setTCPNoDelay (SoDispCon *o, int enable)
	Disable the TCP delay. More...

BA_API int	SoDispCon_getPeerName (SoDispCon o, HttpSockaddr addr, U16 *port)
	Read the remote peer endpoint. More...

BA_API int	SoDispCon_getSockName (SoDispCon o, HttpSockaddr addr, U16 *port)
	Read the local socket endpoint. More...

BA_API char *	SoDispCon_addr2String (SoDispCon o, HttpSockaddr addr, char *buf, int len)
	Format a numeric address without a port number. More...

BA_API BaBool	SoDispCon_cmpAddr (SoDispCon o, HttpSockaddr addr2)
	Compare an address with the current peer address, ignoring port numbers. More...

BA_API int	SoDispCon_connect (SoDispCon o, const char host, U16 port, const void bindIntfName, U16 bindPort, U32 timeout, BaBool dgram, BaBool ipv6, char *errinfo)
	Connect an initialized, empty connection to a remote endpoint. More...

BA_API int	SoDispCon_asyncConnect (SoDispCon o, const char host, U16 port, const void bindIntfName, BaBool ipv6, char *errinfo)
	Begin a TCP connection without waiting for TCP establishment. More...

BA_API int	SoDispCon_asyncConnectNext (SoDispCon *o)
	Try the next resolved address after a failed pending connection. More...

Macro Definition Documentation

◆ SoDispCon_asyncReady

#define SoDispCon_asyncReady ( o ) (o)->exec(o,0,SoDispCon_ExTypeAsyncReady,0,0)

Advance any pending asynchronous send without modifying its payload.

Parameters

[in,out] o Connected object with an allocated asynchronous buffer.

Returns: 1 complete, 0 pending, negative transport error. Does not itself register a send-ready callback.

◆ SoDispCon_asyncSend

#define SoDispCon_asyncSend	(	o,
		len
	)	(o)->exec(o,0,SoDispCon_ExTypeAsyncReady,0,len)

Begin or advance a send from the transport's asynchronous buffer.

Parameters

[in] len Positive payload byte count within the capacity returned by allocAsynchBuf for a new send. Do not alter the buffer until completion; use asyncReady to continue a pending send.

Returns: 1 complete, 0 pending, negative transport error. For a plain socket with no asynchronous buffer, the implementation returns 1 without sending; always allocate and check the buffer before use.

Parameters

[in,out] o Connected object with an allocated asynchronous buffer.

◆ SoDispCon_closeCon

#define SoDispCon_closeCon ( o ) SoDispCon_zzCloseCon(o, 0)

Close the socket, disable events and remove registration.

Parameters

[in,out] o Initialized connection. Does not free object storage. No close result is reported; transport-owned buffers are invalidated.

◆ SoDispCon_destructor

#define SoDispCon_destructor ( o ) SoDispCon_zzCloseCon(o,1)

Shut down and close the socket, disable events and remove registration.

Parameters

[in,out] o Initialized connection. Does not free object storage. No close result is reported; transport-owned buffers are invalidated.

◆ SoDispCon_dispatcherHasCon

#define SoDispCon_dispatcherHasCon ( o ) (((o)->dataBits & SoDispCon_dispatcherHasConDataBitMask)?TRUE:FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if registered with the dispatcher, FALSE otherwise.

◆ SoDispCon_getDispatcher

#define SoDispCon_getDispatcher ( o ) (o)->dispatcher

Parameters

[in] o Initialized connection.

Returns: Borrowed associated dispatcher, possibly NULL.

◆ SoDispCon_getId

#define SoDispCon_getId ( o ) HttpSocket_getId(&(o)->httpSocket)

Parameters

[in] o Initialized connection.

Returns: Platform socket identifier; not a portable persistent connection ID.

◆ SoDispCon_getSharkSslCon

#define SoDispCon_getSharkSslCon	(	o,
		sharkSslConPtrPtr
	)	(o)->exec(o,0,SoDispCon_GetSharkSslCon,sharkSslConPtrPtr,0)

Inspect a successfully installed transport.

Parameters

[in]	o	Connected object with a valid transport implementation.
[out]	sharkSslConPtrPtr	Optional SharkSslCon** output, borrowed on success; NULL requests only the secure-transport test.

Returns: Transport test result; see SoDispCon::getSharkSslCon. The C macro preserves negative transport errors instead of converting them to bool.

◆ SoDispCon_hardClose

#define SoDispCon_hardClose ( o ) SoDispCon_zzCloseCon(o, 2)

Abortively close the socket, disable events and remove registration.

Parameters

[in,out] o Initialized connection. Does not free object storage. No close result is reported; transport-owned buffers are invalidated.

◆ SoDispCon_hasMoreData

#define SoDispCon_hasMoreData ( o ) (((o)->dataBits & SoDispCon_hasMoreDataDataBitMask) ? TRUE : FALSE)

Parameters

[in] o Initialized connection.

Returns: Recorded receive readiness; not a live probe or a byte count.

◆ SoDispCon_isDGRAM

#define SoDispCon_isDGRAM ( o ) (((o)->dataBits & SoDispCon_DGramBitMask) ? TRUE : FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if recorded as datagram/UDP.

◆ SoDispCon_isIP6

#define SoDispCon_isIP6 ( o ) (((o)->dataBits & SoDispCon_IP6DataBitMask) ? TRUE : FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if recorded as IPv6, FALSE for IPv4.

◆ SoDispCon_isNonBlocking

#define SoDispCon_isNonBlocking ( o ) (((o)->dataBits & SoDispCon_isNonBlockingDataBitMask) ? TRUE : FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if the connection records nonblocking mode.

◆ SoDispCon_isSecure

#define SoDispCon_isSecure ( o ) ((o)->exec(o,0,SoDispCon_GetSharkSslCon,0,0) > 0)

Test a successfully installed transport for TLS.

Parameters

[in] o Connected object with an installed transport.

Returns: TRUE if the transport reports secure, FALSE otherwise. Does not establish handshake completion, certificate trust or peer identity.

◆ SoDispCon_isValid

#define SoDispCon_isValid ( o ) HttpSocket_isValid(&(o)->httpSocket)

Parameters

[in] o Initialized connection.

Returns: TRUE if a socket handle is installed; not a peer-liveness test.

◆ SoDispCon_readData

#define SoDispCon_readData	(	o,
		data,
		len,
		relmutex
	)

Value:

(o)->exec(o, (relmutex) ? SoDisp_getMutex((o)->dispatcher) : 0, \

SoDispCon_ExTypeRead,data,len)

SoDisp_getMutex

#define SoDisp_getMutex(o)

Definition: SoDisp.h:215

Read through the installed transport using its recorded readiness.

Parameters

[out]	data	Required writable buffer; returned bytes are not NUL-terminated.
[in]	len	Positive capacity in bytes.
[in]	relmutex	True allows the transport to release the owned dispatcher mutex while waiting, then reacquire it; false (default) keeps it held.

Returns: Positive byte count (possibly short), zero for no data, or negative transport/timeout error. Do not run concurrent reads on one connection.

Parameters

[in,out] o Connected object with an installed transport.

◆ SoDispCon_recEvActive

#define SoDispCon_recEvActive ( o ) (((o)->dataBits & SoDispCon_recEvActiveDataBitMask)?TRUE:FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if receive events are enabled.

◆ SoDispCon_sendEvActive

#define SoDispCon_sendEvActive ( o ) (((o)->dataBits & SoDispCon_sendEvActiveDataBitMask)?TRUE:FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if send-ready events are enabled.

◆ SoDispCon_setDispRecEvent

#define SoDispCon_setDispRecEvent	(	o,
		dispRecEvFp
	)	(o)->dispRecEv=dispRecEvFp

Install the receive callback before enabling events.

Parameters

[in,out]	o	Initialized connection.
[in]	dispRecEvFp	Required callback while receive events are active.

◆ SoDispCon_setDispSendEvent

#define SoDispCon_setDispSendEvent	(	o,
		dispSendEvFp
	)	(o)->dispSendEv=dispSendEvFp

Install the send-ready callback before enabling events.

Parameters

[in,out]	o	Initialized connection.
[in]	dispSendEvFp	Required callback while send events are active.

◆ SoDispCon_setReadTmo

#define SoDispCon_setReadTmo	(	o,
		timeout
	)	(o)->rtmo = (U16)((timeout)/50)

Set the read wait timeout used by supported socket ports.

Parameters

[in,out]	o	Connected object.
[in]	timeout	Nonnegative integer milliseconds, at most 3276750. Stored as U16 units of 50 ms, rounding down; values below 50 disable the timeout. Zero means no timeout. Some read paths consume/reset the setting; SoDispCon_blockRead restores it during its internal TLS retries.

◆ SoDispCon_shutdown

#define SoDispCon_shutdown ( o ) SoDispCon_zzCloseCon(o, 1)

Shut down and close the socket, disable events and remove registration.

Parameters

[in,out] o Initialized connection. Does not free object storage. No close result is reported; transport-owned buffers are invalidated.

◆ SoDispCon_socketHasNonBlockData

#define SoDispCon_socketHasNonBlockData ( o ) (((o)->dataBits & SoDispCon_socketHasNonBlockDataBitMask) ? TRUE : FALSE)

Parameters

[in] o Initialized connection.

Returns: TRUE if socket readiness has been recorded, FALSE otherwise.

Typedef Documentation

◆ SoDispCon

typedef struct SoDispCon SoDispCon

Contains information about the physical socket connection.

This object is used internally by HttpServer when sending and receiving data on either an insecure or secure SSL connection.

◆ SoDispCon_DispRecEv

typedef void(* SoDispCon_DispRecEv) (struct SoDispCon *con)

Dispatcher receive notification, invoked with its mutex held.

Parameters

[in,out] con Borrowed registered connection. Check operation results; readiness does not guarantee successful I/O. Stop events before freeing it.

◆ SoDispCon_DispSendEv

typedef void(* SoDispCon_DispSendEv) (struct SoDispCon *con)

Dispatcher send-ready notification, invoked with its mutex held.

Parameters

[in,out] con Borrowed registered connection. Check operation results; readiness does not guarantee successful I/O. Stop events before freeing it.

Function Documentation

◆ SoDispCon_addr2String()

BA_API char * SoDispCon_addr2String	(	SoDispCon *	o,
		HttpSockaddr *	addr,
		char *	buf,
		int	len
	)

Format a numeric address without a port number.

Parameters

[in]	addr	Required address with the same family as this connection.
[out]	buf	Required writable storage for a NUL-terminated result.
[in]	len	Capacity in bytes including NUL; at least 16 for IPv4 or 46 for IPv6. Always provide writable storage even if capacity is rejected.

Returns: buf on success, NULL on invalid storage, family mismatch or conversion failure. No allocation is performed; do not use the output after failure.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_allocAsynchBuf()

BA_API void * SoDispCon_allocAsynchBuf	(	SoDispCon *	o,
		int *	size
	)

Obtain transport-owned writable storage for asynchronous sending.

Parameters

[in,out] size Required positive requested capacity in bytes; receives the actual capacity, which may differ. Always use the returned capacity.

Returns: Borrowed writable storage, or NULL if allocation fails. Requires a valid connected transport. Do not free it; close or transport buffer release invalidates it. Do not reallocate while an earlier send is pending.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_asyncConnect()

BA_API int SoDispCon_asyncConnect	(	SoDispCon *	o,
		const char *	host,
		U16	port,
		const void *	bindIntfName,
		BaBool	ipv6,
		char **	errinfo
	)

Begin a TCP connection without waiting for TCP establishment.

DNS resolution can still block. Available unless NO_ASYNCH_RESP is defined.

Parameters

[in,out]	o	Initialized empty connection with no transport buffer/TLS state. Keep it alive until the attempt completes or is cleaned up.
[in]	host	Required NUL-terminated hostname or numeric address.
[in]	port	Remote port in host byte order, 1..65535.
[in]	bindIntfName	Borrowed local interface/address, or NULL for default; copied when the resolver keeps state for additional address attempts.
[in]	ipv6	TRUE requests IPv6, FALSE IPv4.
[out]	errinfo	Optional borrowed resolver-text output, initially NULL.

Returns: 1 connected immediately, 0 connection pending, negative error. Register send-ready handling and check socket completion before sending. With USE_ADDRINFO, release connect state before TLS upgrade, asynchronous buffer allocation, or final socket cleanup. See asyncConnectRelease.

Warning: The current USE_ADDRINFO allocation-failure path can also return zero without retaining pending state. Do not assume that zero alone establishes that another address attempt is available.

◆ SoDispCon_asyncConnectNext()

BA_API int SoDispCon_asyncConnectNext ( SoDispCon * o )

Try the next resolved address after a failed pending connection.

Parameters

[in,out] o Connection with live USE_ADDRINFO pending-connect state. Call only after the current attempt fails; do not use as a readiness poll.

Returns: 1 connected, 0 pending, negative error. Without USE_ADDRINFO, returns E_CANNOT_CONNECT because no address-list state is retained.

◆ SoDispCon_asyncReadyF()

BA_API int SoDispCon_asyncReadyF ( SoDispCon * o )

Advance asynchronous sending; same status contract as SoDispCon_asyncReady.

Parameters

[in,out] o Connected object with an allocated asynchronous buffer.

Returns: 1 complete, 0 pending, negative transport error.

◆ SoDispCon_blockRead()

BA_API int SoDispCon_blockRead	(	SoDispCon *	o,
		void *	data,
		int	len
	)

Wait for input using a blocking connection.

Parameters

[in,out]	o	Connected object in blocking mode; no competing reader.
[out]	data	Required writable storage, not NUL-terminated on return.
[in]	len	Positive capacity in bytes.

Returns: Positive byte count, zero when the transport supplies no data, negative error (including timeout). Does not guarantee a full buffer. Allows the owned dispatcher mutex to be released and reacquired while waiting.

◆ SoDispCon_cmpAddr()

BA_API BaBool SoDispCon_cmpAddr	(	SoDispCon *	o,
		HttpSockaddr *	addr2
	)

Compare an address with the current peer address, ignoring port numbers.

Parameters

[in] addr2 Required address to compare; IPv4-mapped IPv6 is recognized.

Returns: True if equal, false if different or the peer address lookup fails.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_connect()

BA_API int SoDispCon_connect	(	SoDispCon *	o,
		const char *	host,
		U16	port,
		const void *	bindIntfName,
		U16	bindPort,
		U32	timeout,
		BaBool	dgram,
		BaBool	ipv6,
		char **	errinfo
	)

Connect an initialized, empty connection to a remote endpoint.

Parameters

[in]	host	Required NUL-terminated hostname or numeric IP address.
[in]	port	Remote TCP/UDP port in host byte order, 1..65535.
[in]	bindIntfName	Optional borrowed platform local interface/address used during the call; NULL selects the default.
[in]	bindPort	Local port in host byte order; zero lets the OS choose.
[in]	timeout	Positive connect timeout in milliseconds, default 1500. The legacy resolver path ignores this value; USE_ADDRINFO applies it to individual address attempts, not the entire DNS-and-connect operation.
[in]	dgram	TRUE selects UDP, FALSE TCP (default).
[in]	ipv6	TRUE requests IPv6, FALSE IPv4 (default); resolution depends on the selected network port.
[out]	errinfo	Optional output for borrowed platform resolver text; initialized to NULL. Do not free it or rely on text as a stable error code.

Returns: Zero on success, negative socket/resolver error on failure. The owned dispatcher mutex is released around resolution/connect and acquired again before return. Do not use the connection concurrently during this call. Failure can require cleanup; no socket ownership is returned to the caller.

Parameters

[in,out] o Initialized empty connection.

◆ SoDispCon_constructor()

BA_API void SoDispCon_constructor	(	SoDispCon *	o,
		struct SoDisp *	dispatcher,
		SoDispCon_DispRecEv	e
	)

Initialize an empty connection without opening a socket.

Parameters

[out]	o	Caller-owned storage.
[in]	dispatcher	Borrowed dispatcher, or NULL for independent use.
[in]	e	Receive callback, required before enabling receive events. Install a transport by connecting or moving in an accepted connection.

◆ SoDispCon_getPeerName()

BA_API int SoDispCon_getPeerName	(	SoDispCon *	o,
		HttpSockaddr *	addr,
		U16 *	port
	)

Read the remote peer endpoint.

Parameters

[out]	addr	Required address output, valid only on success.
[out]	port	Optional port output in host byte order; NULL omits it.

Returns: Zero on success, nonzero platform socket status on failure.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_getSharkAlert()

BA_API int SoDispCon_getSharkAlert	(	SoDispCon *	o,
		U8 *	alertLevel,
		U8 *	alertDescription
	)

Read the current SharkSSL alert fields.

Parameters

[in]	o	Connection known to use SharkSSL, not a plain socket with an asynchronous buffer or a pending connect operation.
[out]	alertLevel	Required U8 output, valid on success.
[out]	alertDescription	Required U8 output, valid on success.

Returns: Zero if TLS state exists, -1 otherwise. Does not clear the alert. Available with the SharkSSL transport wrapper.

◆ SoDispCon_getSockName()

BA_API int SoDispCon_getSockName	(	SoDispCon *	o,
		HttpSockaddr *	addr,
		U16 *	port
	)

Read the local socket endpoint.

Parameters

[out]	addr	Required address output, valid only on success.
[out]	port	Optional port output in host byte order; NULL omits it.

Returns: Zero on success, nonzero platform socket status on failure.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_moveCon()

BA_API int SoDispCon_moveCon	(	SoDispCon *	o,
		SoDispCon *	newCon
	)

Move socket and transport ownership without copying object storage.

Parameters

[in,out]	o	Source connection; receive/send events are deactivated and it is removed from dispatcher registration during the move.
[in,out]	newCon	Initialized empty destination with dispatcher and event callbacks already configured. Do not overwrite a live destination socket.

Returns: Zero. Register/activate the destination separately as required.

◆ SoDispCon_sendChunkData()

BA_API int SoDispCon_sendChunkData	(	SoDispCon *	o,
		const void *	data,
		int	len
	)

Send one HTTP chunk, including its hexadecimal size and CRLF delimiters.

Parameters

[in]	data	Borrowed source containing len readable bytes.
[in]	len	Byte count from 0 through 65535. Zero sends the final empty chunk.

Returns: Zero on success, -1 on header, payload or delimiter send failure. Partial wire output can already exist on failure.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_sendData()

BA_API int SoDispCon_sendData	(	SoDispCon *	o,
		const void *	data,
		int	len
	)

Send an entire buffer through the installed transport.

Parameters

[in]	data	Borrowed source containing len readable bytes.
[in]	len	Nonnegative byte count.

Returns: Zero only if the transport reports the complete byte count; -1 for an invalid socket, E_SOCKET_WRITE_FAILED for a failed or short send. No partial count is supplied. May release/reacquire the dispatcher mutex. Use the async buffer API for nonblocking partial-send handling.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_sendDataNT()

BA_API int SoDispCon_sendDataNT	(	SoDispCon *	o,
		const void *	data,
		int	len
	)

Send all bytes with the sendData contract, but omit body tracing.

Parameters

[in,out]	o	Connected object.
[in]	data	Borrowed source containing len bytes.
[in]	len	Nonnegative byte count.

Returns: Zero complete, -1 invalid socket, E_SOCKET_WRITE_FAILED short/error. No partial count is returned. May release/reacquire the dispatcher mutex.

◆ SoDispCon_sendDataX()

BA_API int SoDispCon_sendDataX	(	SoDispCon *	o,
		const void *	data,
		int	len
	)

Send all bytes without releasing the dispatcher mutex.

Parameters

[in,out]	o	Connected object; caller manages synchronization.
[in]	data	Borrowed source containing len readable bytes.
[in]	len	Nonnegative byte count.

Returns: Zero complete, -1 invalid socket, E_SOCKET_WRITE_FAILED short/error.

◆ SoDispCon_setBlocking()

BA_API int SoDispCon_setBlocking ( SoDispCon * o )

Select blocking socket mode.

Returns: Zero success, -1 if already blocking, or a platform failure status.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_setNonblocking()

BA_API int SoDispCon_setNonblocking ( SoDispCon * o )

Select nonblocking socket mode.

Returns: Zero success, -1 if already nonblocking, or a platform failure status. The recorded mode changes only when the platform operation succeeds.

Parameters

[in,out] o Initialized connection.

◆ SoDispCon_setTCPNoDelay()

BA_API void SoDispCon_setTCPNoDelay	(	SoDispCon *	o,
		int	enable
	)

Disable the TCP delay.

What TCP normally does is queue up data so it only sends full packets out when possible. (This is called Nagle's algorithm.) Call this function if you do not want that behavior.

Parameters

[in]	enable	True disables Nagle; false enables it. No socket-option error status is returned; errors can be traced.
[in,out]	o	Initialized connection.

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ SoDispCon_asyncReady

◆ SoDispCon_asyncSend

◆ SoDispCon_closeCon

◆ SoDispCon_destructor

◆ SoDispCon_dispatcherHasCon

◆ SoDispCon_getDispatcher

◆ SoDispCon_getId

◆ SoDispCon_getSharkSslCon

◆ SoDispCon_hardClose

◆ SoDispCon_hasMoreData

◆ SoDispCon_isDGRAM

◆ SoDispCon_isIP6

◆ SoDispCon_isNonBlocking

◆ SoDispCon_isSecure

◆ SoDispCon_isValid

◆ SoDispCon_readData

◆ SoDispCon_recEvActive

◆ SoDispCon_sendEvActive

◆ SoDispCon_setDispRecEvent

◆ SoDispCon_setDispSendEvent

◆ SoDispCon_setReadTmo

◆ SoDispCon_shutdown

◆ SoDispCon_socketHasNonBlockData

Typedef Documentation

◆ SoDispCon

◆ SoDispCon_DispRecEv

◆ SoDispCon_DispSendEv

Function Documentation

◆ SoDispCon_addr2String()

◆ SoDispCon_allocAsynchBuf()

◆ SoDispCon_asyncConnect()

◆ SoDispCon_asyncConnectNext()

◆ SoDispCon_asyncReadyF()

◆ SoDispCon_blockRead()

◆ SoDispCon_cmpAddr()

◆ SoDispCon_connect()

◆ SoDispCon_constructor()

◆ SoDispCon_getPeerName()

◆ SoDispCon_getSharkAlert()

◆ SoDispCon_getSockName()

◆ SoDispCon_moveCon()

◆ SoDispCon_sendChunkData()

◆ SoDispCon_sendData()

◆ SoDispCon_sendDataNT()

◆ SoDispCon_sendDataX()

◆ SoDispCon_setBlocking()

◆ SoDispCon_setNonblocking()

◆ SoDispCon_setTCPNoDelay()
