NetIo.h File Reference

#include <HttpServer.h>
#include <IoIntf.h>

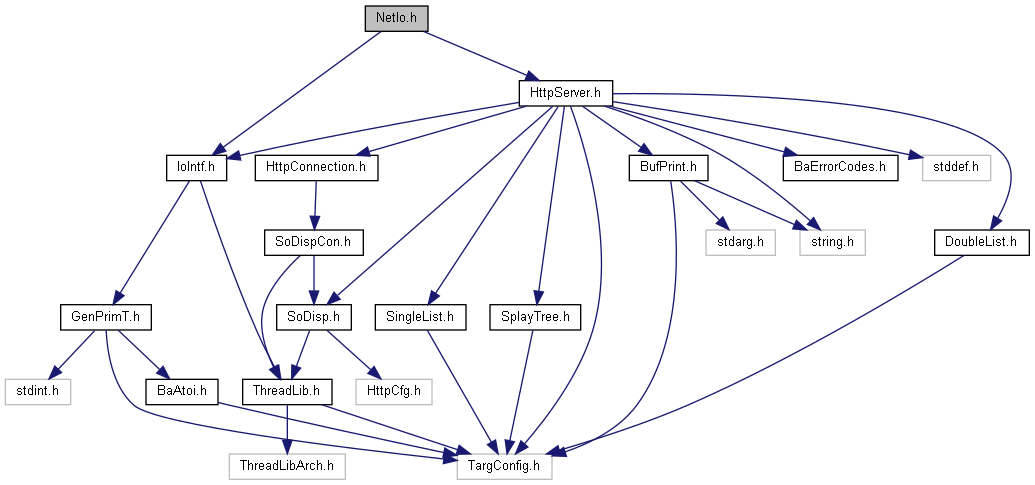

Include dependency graph for NetIo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	NetIo
	The NetIo is similar to a network file system and makes it possible for the server to access resources on another Barracuda server. More...

Macros
#define	NetIo_setSSL(o, ssl)   (o)->sharkSslClient=ssl
	Assign TLS configuration for future clients without changing the cached client. More...

Typedefs
typedef NetIo	NetIo
	The NetIo is similar to a network file system and makes it possible for the server to access resources on another Barracuda server. More...

Functions
void	NetIo_constructor (NetIo *o, struct SoDisp *disp)
	The NetIo constructor. More...
void	NetIo_destructor (NetIo *o)
	Close the cached HTTP client and free copied configuration and its mutex. More...
int	NetIo_setRootDir (NetIo *o, const char *url)
	Initialize/set the URL to the far side Barracuda server. More...
int	NetIo_setUser (NetIo *o, const char *user, const char *password)
	Set HTTP Basic authentication credentials and discard the cached client. More...
int	NetIo_setProxy (NetIo *o, const char *proxy, U16 portNo, BaBool useSocksProxy)
	Set proxy. More...
int	NetIo_setProxyUser (NetIo *o, const char *user, const char *password)
	Set copied proxy authentication credentials; discard the cached client. More...
int	NetIo_setIntfName (NetIo *o, const char *intfName)
	Select the local interface for future HTTP clients. More...
int	NetIo_setIPv6 (NetIo *o, BaBool enable)
	Select the family for subsequent connections and discard the cached client. More...

Macro Definition Documentation

NetIo_setSSL

#define NetIo_setSSL	(		o,
			ssl
	)		(o)->sharkSslClient=ssl

Assign TLS configuration for future clients without changing the cached client.

Parameters

[in,out]	o	Initialized NetIo.
[in]	ssl	Borrowed initialized SharkSsl_Client or NULL, valid throughout use.

See also

NetIo::setSSL

Typedef Documentation

NetIo

typedef NetIo NetIo

The NetIo is similar to a network file system and makes it possible for the server to access resources on another Barracuda server.

The NetIo is a web file manager client specifically designed to operate a remote HttpResMgr. In other words, the remote HttpResMgr's file system appears as a local file system to code using an instance of the NetIo class.

The NetIo is typically used during development of LSP code in an embedded device without a file system. The device can access resources on for example a remote Windows computer as if the resources are locally on the device.

It is recommended to increase the size of the Web server's default HTTP response buffer if NetIo is configured as the I/O for a HttpResRdr, HttpResMgr, or a WebDAV instance. A size of 8Kbytes can reduce remote read requests compared with a small buffer; the benefit depends on the resources and access pattern. See HttpServerConfig::setResponseData for more information.

The NetIo code, which can be found in xrc/misc/NetIo.c, is delivered as example code. You must therefore include this code in your build if you intend to use NetIo. Serialize configuration changes with file operations; the internal I/O mutex does not protect all setters.

Function Documentation

NetIo_constructor()

void NetIo_constructor	(	NetIo *	o,
		struct SoDisp *	disp
	)

The NetIo constructor.

A NetIo instance cannot be used before it is initialized by calling NetIo::setRootDir.

Parameters

	disp	Borrowed dispatcher (default NULL), valid throughout use. This optional parameter that makes the integrated NetIo HTTP client release the dispatcher mutex when reading from or writing to the socket. The 'disp' parameter is typically set if the NetIo class is used by a Barracuda Web Server object such as a HttpResRdr instance.
[in,out]	o	Caller-owned NetIo instance.

NetIo_destructor()

void NetIo_destructor

(

NetIo *

o

)

Close the cached HTTP client and free copied configuration and its mutex.

Close open resources/iterators and stop callers first. Does not destroy the borrowed dispatcher or TLS client.

Parameters

[in,out]

o

Caller-owned NetIo instance.

NetIo_setIntfName()

int NetIo_setIntfName	(	NetIo *	o,
		const char *	intfName
	)

Select the local interface for future HTTP clients.

Parameters

[in]

intfName

Copied NUL-terminated platform interface/address, or NULL to use the default. Does not replace an already cached client.

Returns

Zero success, E_MALLOC allocation failure. Old value is discarded.

Parameters

[in,out]

o

Caller-owned NetIo instance.

NetIo_setIPv6()

int NetIo_setIPv6	(	NetIo *	o,
		BaBool	enable
	)

Select the family for subsequent connections and discard the cached client.

Parameters

[in,out]	o	Initialized NetIo.
[in]	enable	TRUE selects IPv6, FALSE IPv4.

Returns

Always zero. The C++ wrapper returns no value.

NetIo_setProxy()

int NetIo_setProxy	(	NetIo *	o,
		const char *	proxy,
		U16	portNo,
		BaBool	useSocksProxy
	)

Set proxy.

Parameters

proxy	Copied NUL-terminated proxy hostname/address, or NULL to disable.
portNo	Proxy TCP port in host byte order, 1..65535 when enabled.
useSocksProxy	FALSE selects the HTTP CONNECT proxy path; TRUE selects SOCKS5. This is a proxy protocol choice, not a promise of encrypted communication with the proxy itself.

Returns

Zero success, E_MALLOC allocation failure. Discards the cached client and changes proxy mode before allocating the new address.

Parameters

[in,out]

o

Caller-owned NetIo instance.

NetIo_setProxyUser()

int NetIo_setProxyUser	(	NetIo *	o,
		const char *	user,
		const char *	password
	)

Set copied proxy authentication credentials; discard the cached client.

Parameters

[in]	user	NUL-terminated username, or NULL to clear credentials.
[in]	password	NUL-terminated password, or NULL when user already contains user:password. Configure before opening remote resources.

Returns

Zero success, E_MALLOC allocation failure; old credentials are discarded before allocation.

Parameters

[in,out]

o

Caller-owned NetIo instance.

NetIo_setRootDir()

int NetIo_setRootDir	(	NetIo *	o,
		const char *	url
	)

Initialize/set the URL to the far side Barracuda server.

The URL must identify the root of a HttpResMgr or a subdirectory within a HttpResMgr instance. As an example, a far side Barracuda server, with a HttpResMgr instance installed in the Virtual File System at URI /drive/ can be initialized as follows:

Base url: http://domainname/drive/
Sub-directory: http://domainname/drive/c/lsp/

In the second example above, the far side HttpResMgr is mapped to the root of the Windows computer. The path /c/lsp/ is to a directory where the files to a LSP application can be found.

The NetIo instance can also access a remote HttpResMgr protected by an authenticator as long as the far side authenticator accepts Basic authentication. In other words, the far side authenticator must be BasicAuthenticator or Authenticator.

Parameters

url	Required NUL-terminated HTTP(S) URL to the remote HttpResMgr directory, copied and normalized with a trailing slash. Example: http://192.168.1.100/fs/. Configure authentication and TLS first.

Returns

Zero after the remote stat confirms a directory; E_INVALID_URL for an invalid URL, E_MALLOC for allocation failure, IOINTF_ENOENT for a nondirectory, or another I/O/network status. This operation performs network I/O. The previous root is discarded even if the change fails; a failed instance must receive a valid root before normal file operations.

Parameters

[in,out]

o

Caller-owned NetIo instance.

NetIo_setUser()

int NetIo_setUser	(	NetIo *	o,
		const char *	user,
		const char *	password
	)

Set HTTP Basic authentication credentials and discard the cached client.

Parameters

[in]	user	NUL-terminated username, or NULL to clear credentials.
[in]	password	NUL-terminated password; if NULL, user must contain the complete user:password string. Strings are copied.

Returns

Zero success, E_MALLOC allocation failure. Old credentials are discarded before allocation, so failure is not a rollback.

Parameters

[in,out]

o

Caller-owned NetIo instance.
