OpenSslCon.h File Reference

#include <HttpServCon.h>
#include <openssl/ssl.h>

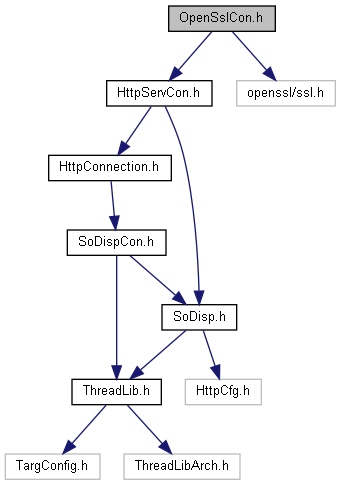

Include dependency graph for OpenSslCon.h:

Go to the source code of this file.

Classes
struct	OpenSslCon
	OpenSSL-backed HTTP listener. More...

Macros
#define	OpenSslCon_isValid(o)   HttpServCon_isValid((HttpServCon*)o)

Typedefs
typedef struct OpenSslCon	OpenSslCon
	OpenSSL-backed HTTP listener. More...

Functions
SHARKSSL_API void	OpenSslCon_constructor (OpenSslCon *o, SSL_CTX *ctx, struct HttpServer *server, U16 port, BaBool setIP6, const void *interfaceName)
	Create an OpenSSL Server Connection Object. More...
SHARKSSL_API void	OpenSslCon_destructor (OpenSslCon *o)
	Close and unregister the listener. More...
SHARKSSL_API int	OpenSslCon_setPort (OpenSslCon *o, U16 portNumber, BaBool setIp6, const void *interfaceName)
	Open a replacement listener, then close the old listener on success. More...

Macro Definition Documentation

OpenSslCon_isValid

#define OpenSslCon_isValid

(

o

)

HttpServCon_isValid((HttpServCon*)o)

Parameters

[in]

o

Initialized listener.

Returns

TRUE if its listening socket is valid, FALSE otherwise.

Typedef Documentation

OpenSslCon

typedef struct OpenSslCon OpenSslCon

OpenSSL-backed HTTP listener.

Configure SSL_CTX before construction. Check OpenSslCon_isValid after construction; socket setup has no direct constructor status. Listener configuration requires the dispatcher mutex.

Function Documentation

OpenSslCon_constructor()

SHARKSSL_API void OpenSslCon_constructor	(	OpenSslCon *	o,
		SSL_CTX *	ctx,
		struct HttpServer *	server,
		U16	port,
		BaBool	setIP6,
		const void *	interfaceName
	)

Create an OpenSSL Server Connection Object.

Parameters

	ctx	Required borrowed SSL_CTX configured for server use. Keep it alive throughout listener use; configure certificates before listening.
	server	Required borrowed server, valid throughout listener use.
	port	TCP listen port in host byte order, normally 443. Zero initializes an inactive listener without opening a socket.
	setIP6	TRUE selects IPv6, FALSE IPv4. This parameter is ignored unless the underlying TCP/IP stack is a dual IP V4 and IP V6 stack.
	interfaceName	Borrowed platform binding address/interface, used during the call; normally a NUL-terminated address string. NULL binds the wildcard address. Accepted representation is platform-specific.
[out]	o	Caller-owned listener storage.

OpenSslCon_destructor()

SHARKSSL_API void OpenSslCon_destructor

(

OpenSslCon *

o

)

Close and unregister the listener.

Accepted connections are separate.

Parameters

[in,out]

o

Initialized listener; no borrowed dependency is freed.

OpenSslCon_setPort()

SHARKSSL_API int OpenSslCon_setPort	(	OpenSslCon *	o,
		U16	portNumber,
		BaBool	setIp6,
		const void *	interfaceName
	)

Open a replacement listener, then close the old listener on success.

Parameters

[in]	portNumber	New TCP port in host byte order, 1..65535.
[in]	setIp6	True selects IPv6, false IPv4 (default).
[in]	interfaceName	Borrowed platform binding address/interface, or NULL for wildcard; used during this call only.

Returns

Zero on success, -1 on failure. The old listener is retained if replacement setup fails. Uses the associated server's dispatcher. Hold the dispatcher mutex during this operation.

Parameters

[in,out]

o

Initialized listener.
